Confirming confirmat screw dimensions
7mmx50mm Ponzi PZ3
Drill would be stepped
Just in case I need to add any additional or just in case of missing pre-drilled..
-
3 Replies
-
They sell the stepped drill, but I’ve honestly never used it. If I run into issues with a Confirmat screw, I usually just skip that hole, drill a new pilot hole with a standard bit, and use a regular 3″–3.5″ construction screw as a replacement. This works well, especially since Confirmat drill bits are very long and can be difficult to work with on site.
-
This happened for me now, the predrilled hole of my top stretcher is off for like 3~5 mm.
Should I fill and glue the old holes and re-drill, or add new drill holes?
For the regular construction screws you mentioned, what size do you recommend, still 7mm?
-
If the holes are off on a single part, then the part likely shifted while being drilled on the CNC. The smaller the part, the easier it is for it to move/shift during drilling.

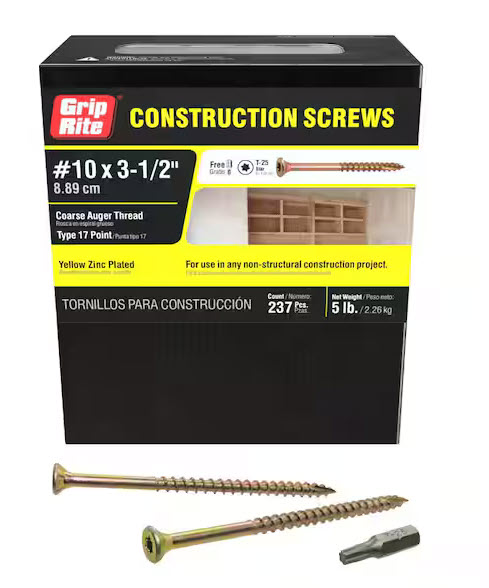

If it’s just one part that’s off, I’d simply drill new holes and use Grip-Rite screws from Home Depot. The 3.5″ version works great—they have a coarse, aggressive thread that bites very well.
The same 3.5″ screw works well for installing cabinets to wall studs. About 1″ is taken up by the cabinet back and the 3/4″ nailer, leaving roughly 2″ of the screw solidly embedded into the studs after accounting for the 1/2″ drywall.
