  2 Door False front cooktop base with 2 roll out shelves

  Posted by DJ on September 4, 2025 at 11:03 am

  Hi. For the 34.5” high B2DCOOKTOP, if I added 2 roll out shelves, what are the dimensions for the false front, and for the spacing between the two shelves? Thanks!

  Chad replied 10 months, 2 weeks ago 1 Member · 3 Replies
• 3 Replies

•

  Chad

  Administrator

  September 4, 2025 at 11:46 am

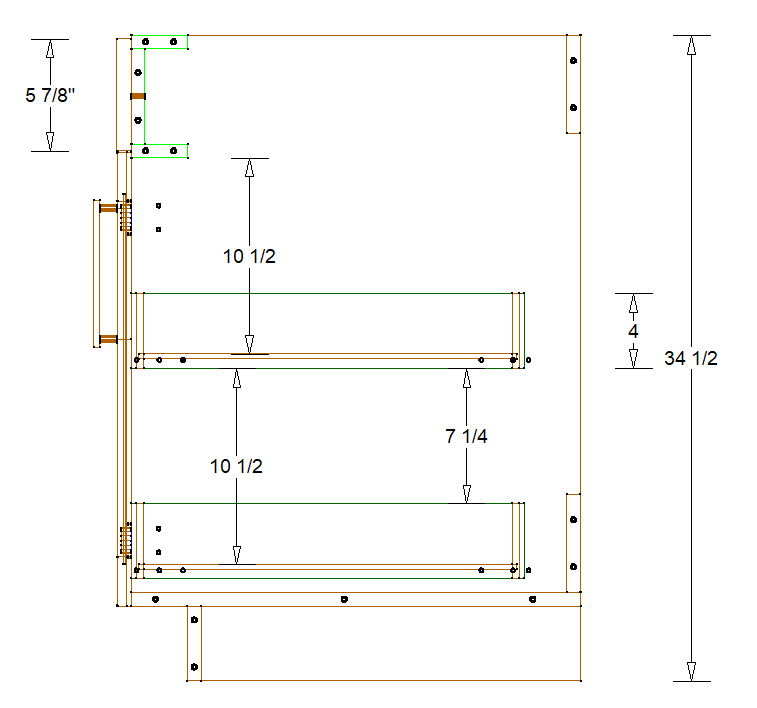

  Sure, the Cooktop cabinet will have a standard top front height of 5 7/8″ tall. See here for a side view of the rollouts and their placement.

  ---

  Legacy attachments:

  • cooktop-cabinet
•

  DJ

  Guest

  September 5, 2025 at 10:15 am

  Thanks! For a 30” w cabinet, what would the inside width of the pull-outs be?

  •

    Chad

    Administrator

    September 5, 2025 at 12:18 pm

    Looks like it would be about 24 13/16″.

    ---

    Legacy attachments:

    • PULLOUT-WIDTH
