W45, B45 lazy susan

[Chad]

I am away from the computer for the next week and only have access to mobile, so I am unable to provide a CAD top view of that cabinet.

That said, a 24” x 24” W45 cabinet will have an opening of approximately 22.5” in both width and depth, accounting for the 3/4” thick cabinet sides and back. The hinges typically project about 1.25” into the opening.

A 20” aftermarket D-shaped lazy Susan will be a tight fit, but it is worth trying. You can always set it slightly farther back into the opening if needed. I recommend ordering the lazy Susan from Amazon and returning it if you need to go with a smaller diameter.

The same concept applies to the BASE 45 as well. I would shoot for the 32” myself but accept that I may need to push it back from the face of the opening or swap for a smaller one if I got into trouble.

[Mystic.Musketeer]

I have ordered 2 W45s and 2 B45s. I am exploring building my own lazy susans and therefore want to better understanding of the opening dimensions and the actual depths.

For a B45 : W=36,D=36,L=24, R=24 height = 34.5. Will such a B45 have an opening with dimension width = 15.9 in and height = 29 in. and a diagonal of 33 in ?
For a W45 : W=24,D=24,L=12, R=12 height = 35, would the height of the opening be 33.5 in?

Please could you provide a some CAD pictures of the opening and the top view of these cabinets.

Thank you

[Chad]

Apologies for the delay. I was out on vacation and just returned yesterday.

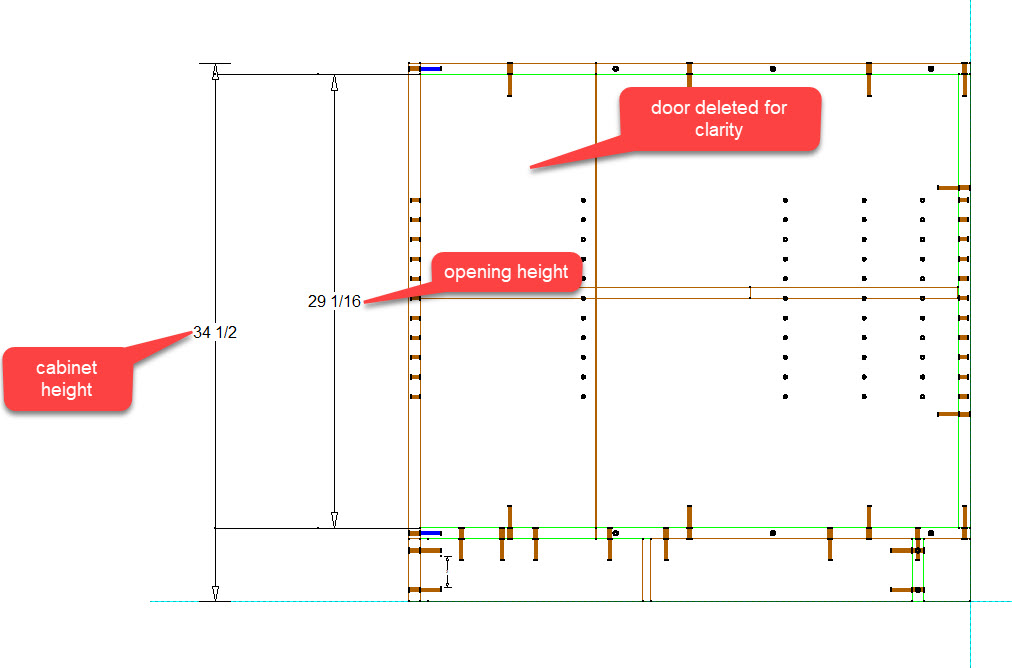

Please see the attached images for additional information on the cabinet and opening dimensions.

---

Legacy attachments:

• b452
• b451
• W452
• W45-1

• This reply was modified 2 weeks, 4 days ago by  Chad.

[Mystic.Musketeer]

Not a problem. These diagrams are very helpful. Thank you very much for sending these over.
