W2BLINDCORNERRIGHTV2 integrated filler
Hello,

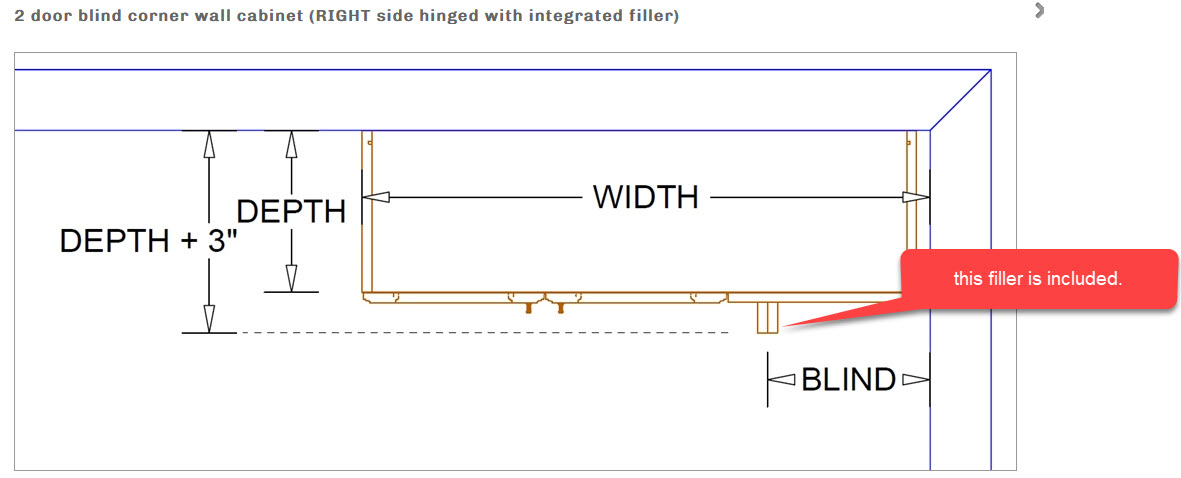

When a W2BLINDCORNERRIGHTV2 is used Chief Architect does not show the integrated filler. It allows one to push an abutting cabinet flush with the blind cabinet. Just wanted to be sure that we need to add a 3 in. filler to make it (d + 3)?
-
1 Reply
-

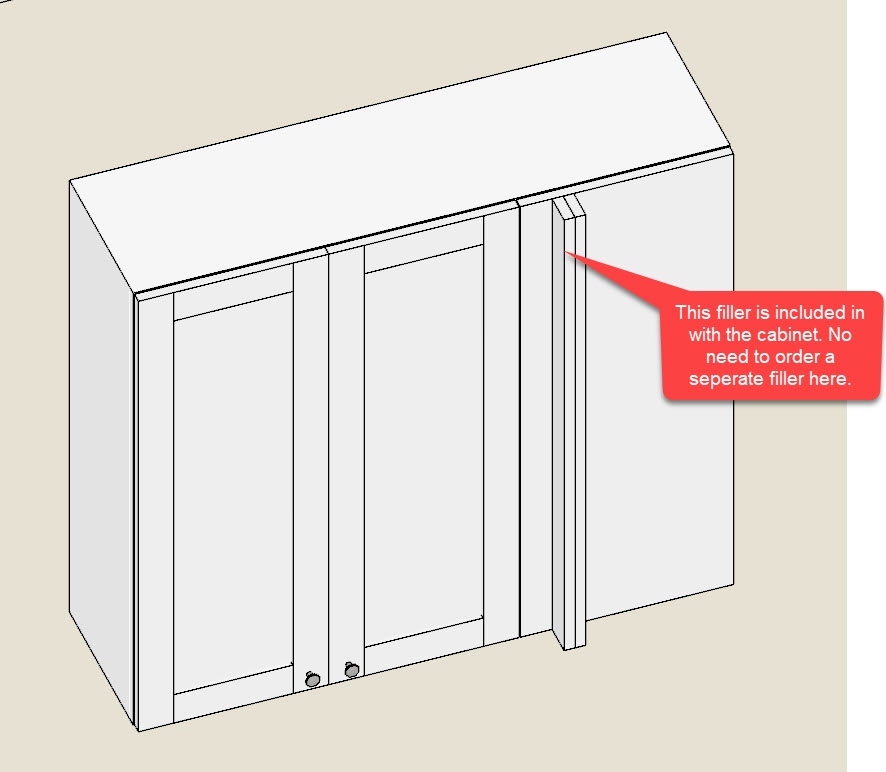

The integrated filler is built into the cabinet. For some reason, Chief Architect doesn’t display it in the top view, but it does appear in the 3D view. The filler is represented as part of a door object for visual purposes, so Chief Architect doesn’t recognize it as a separate component. Rest assured, the filler is included when you order this cabinet.
