Cabinet door cup dimensions

Posted by Jack Baas on January 10, 2025 at 6:10 am

What is the offset dimension of the cup from the edge of the door, typical dimensions are 3 to 7 mm. What dimension do you use

Chad replied 1 year, 6 months ago 1 Member · 1 Reply
1 Reply

Chad

Administrator
January 10, 2025 at 11:20 am

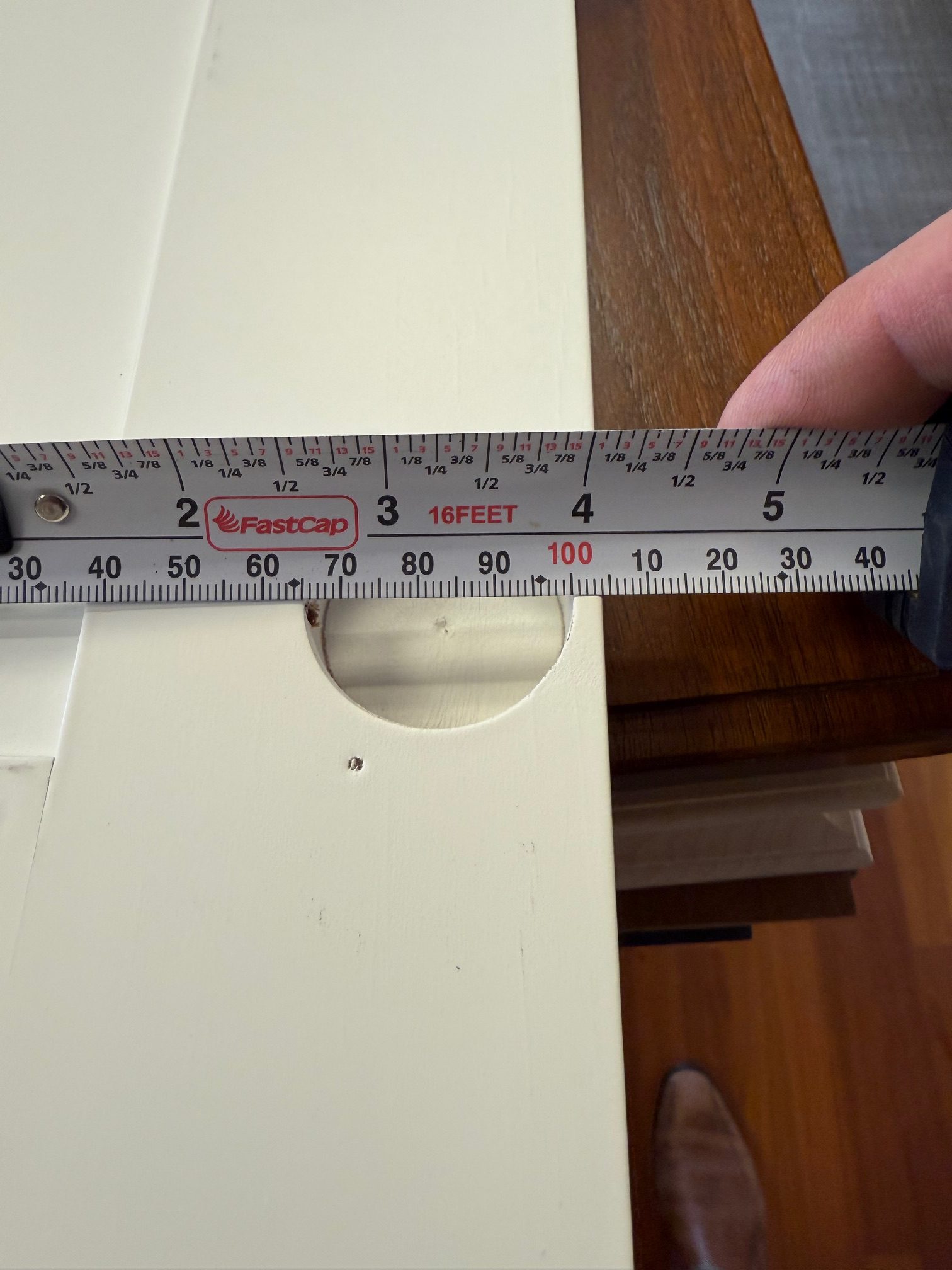

Hinge cups are drilled with a 3.5-4mm tab.
Legacy attachments:
- IMG_0267
